Zero Sequence Current Transformer

Model:LXK-Φ80-200

Ole Anqiang Power's Tuto'atasi Fa'avae Zero Sequence Current Transformer e talafeagai mo faiga eletise ma le fa'amauina o taimi ole 50Hz po'o le 60Hz ma le fua fa'atatau ole 0.5KV ma lalo ifo, mo le fa'aoga i le malosi ma le fuaina o le voluma ma le puipuiga o le fa'asalalau. O loʻo faʻaalia ai le maualuga o le vevela, lelei le faʻaogaina o le insulation, faʻapipiʻi lapoʻa, ma faigofie faʻapipiʻi.

Auina atu Su'esu'ega

Fa'amatalaga o oloa

Ole fa'asologa ole fa'asologa ole a le Anqiang Power o lo'o iai nei o le LXK-Φ80-200, fa'atasi ai ma le voltage fuaina o le 10KV ma le sa'o o le 10P10. O le taimi nei ua fa'atulagaina e fa'atatau i mana'oga o tagata fa'aoga. O le tino o le oloa e faia i le epoxy resin casting, ma faʻaaogaina ie silicon uʻamea malulu-lelei ma vili apamemea mama. O ie u'amea u'amea malulu e fa'aitiitia ai le leiloa o le hysteresis ma le leiloa o le taimi nei, fa'aleleia le fa'aogaina o le fa'aogaina ma le fa'amautinoaina o le saogalemu o meafaigaluega; o le conductivity sili ona lelei o le kopa e masani ona faʻaaogaina i uaea eletise ma vaega e pei o transformers, switchgear, ma vaeluaga matagaluega.

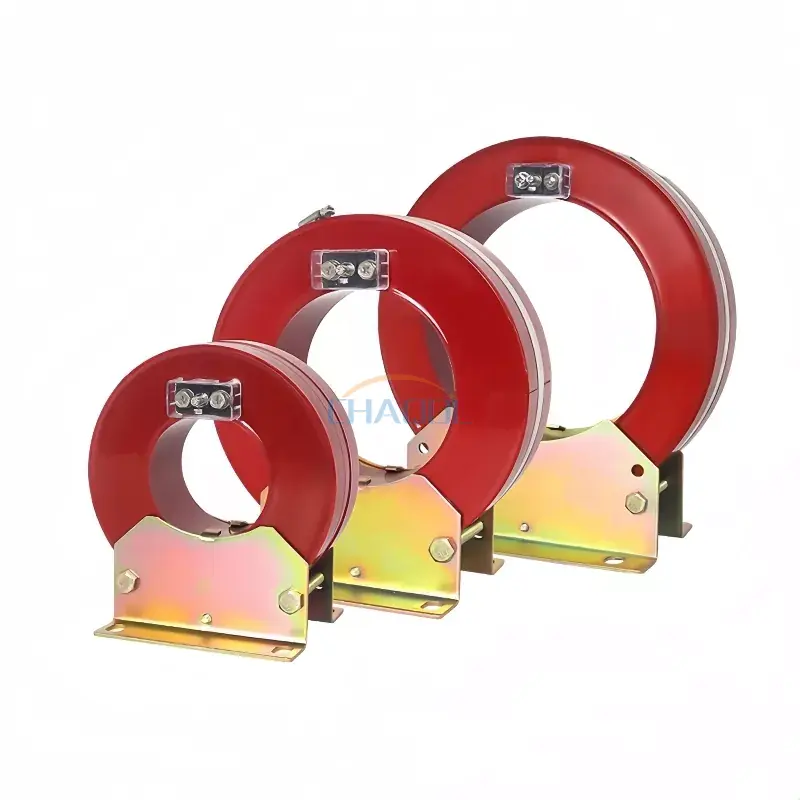

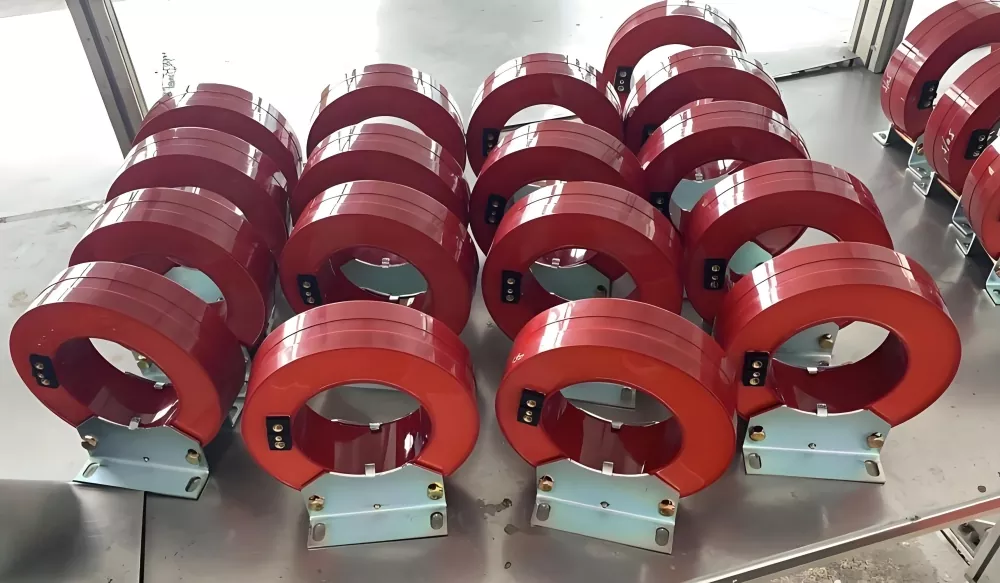

Ata o oloa moni

Zero Sequence Current Transformer

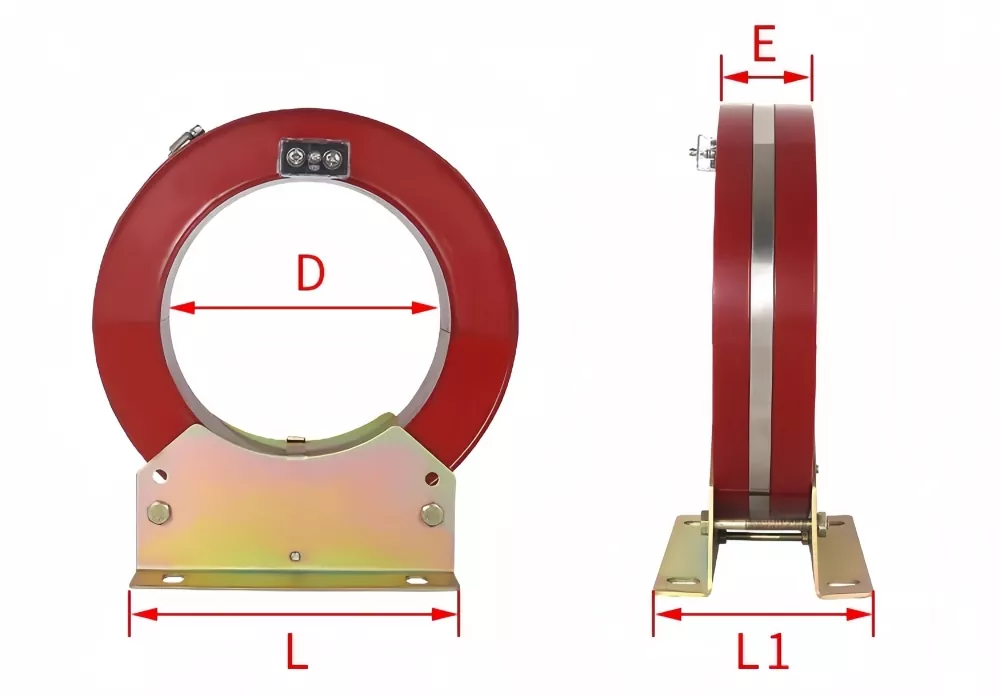

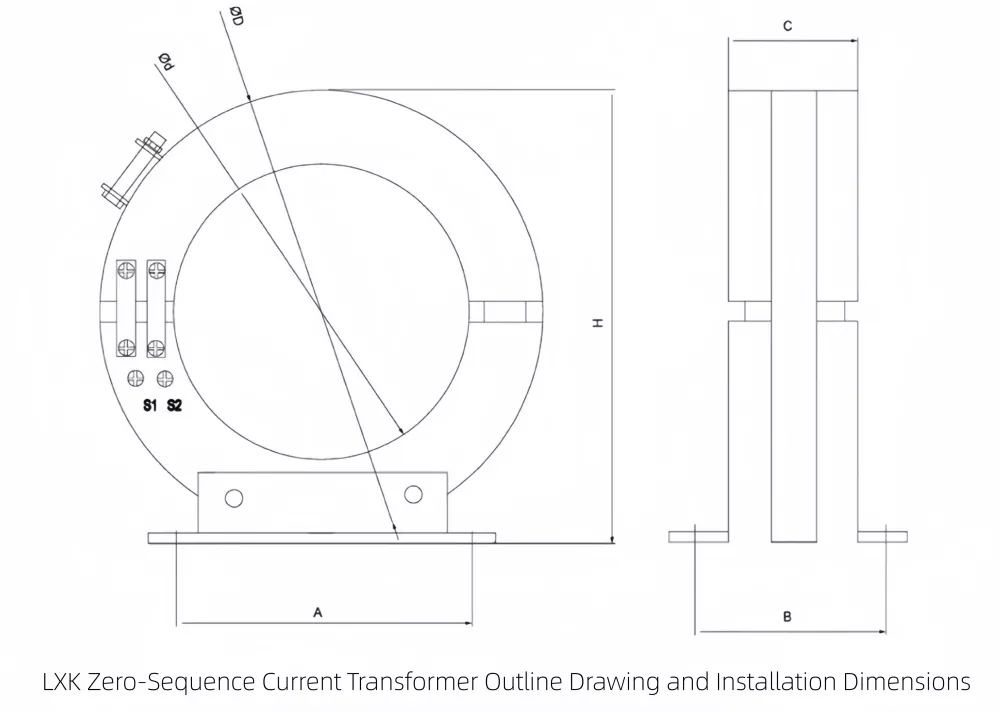

Fa'aaliga o oloa ma fua fa'atatau

Zero Sequence Current Transformer

Fa'amatalaga o oloa	D	E	L	L1
LXK-80	Φ80	58	130	123
LXK-100	Φ100	58	130	122
LXK-120	Φ120	57	130	120
LXK-150	Φ150	58	190	123
LXK-180	Φ180	58	190	125
LXK-200	Φ200	60	280	129
LXK-240	Φ240	80	280	167
LXK-260	Φ260	55	280	120
LXK-300	Φ300	80	280	170

Fa'ata'ita'i ta'iala fa'apitoa

Fa'ata'ita'iga ta'avale	Relay coil auala feso'ota'iga	Fa'atauga fua o le ta'avale	Fa'asologa e leai se tau aogā (A)
DD-11/60 DD-1/60	feso'ota'iga fa'asologa	15*1	2.4-4.5
		30*1
	fa'atasi	15*2	3-5
		30*2
	feso'ota'iga fa'asologa	15*1	3-5
		30*1
	fa'atasi	15*2	3-6
		30*2

Tulaga fa'amama fa'atatau: 0.5/3KV

Oloa Fa'ailoga

Ole faasologa ole faasologa ole eletise ole Anqiang Eletise o lo'o i ai nei o se mamanu vaeluaina ma le epoxy resin casting. I le taimi o le faʻapipiʻiina, e mafai ona vaeluaina le transformer i ni afa se lua ona tuʻufaʻatasia lea e faʻaaoga ai mama faʻapipiʻi, faʻapipiʻi faigofie tele.

Tulaga masani o Galuega

1. Nofoaga fa'apipi'i: I totonu

2. Si'osi'omaga vevela: La'ititi ambient vevela -5 ℃, maualuga maualuga vevela 40 ℃, averesi o aso uma vevela e le sili atu i le 30 ℃

3. E fetaui lelei mo tulaga o le ea e aunoa ma le leaga tele

Fa'ailoga vevela: Fa'asologa Zero Fa'aliliuga o lo'o i ai nei, Fa'a'ele'ele Fa'aletonu le taimi nei Transformer, Leakage Va'ai Va'ai
