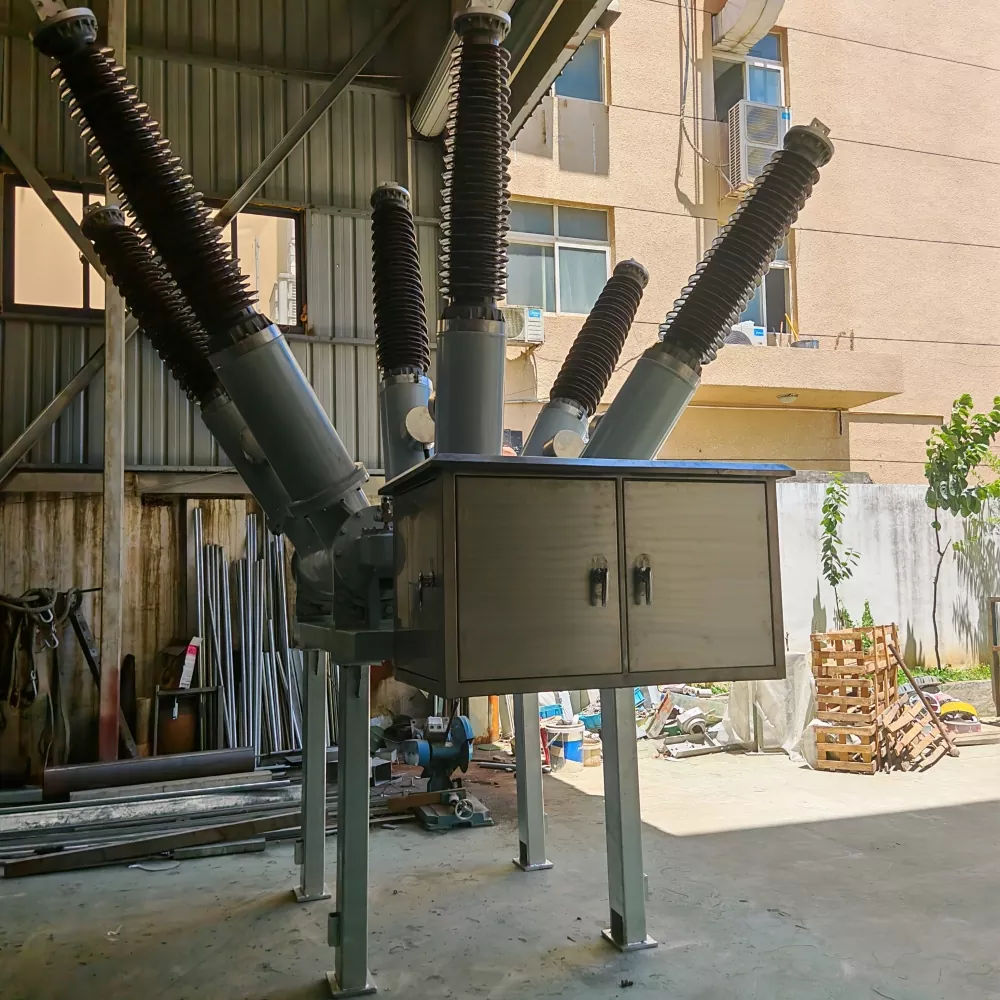

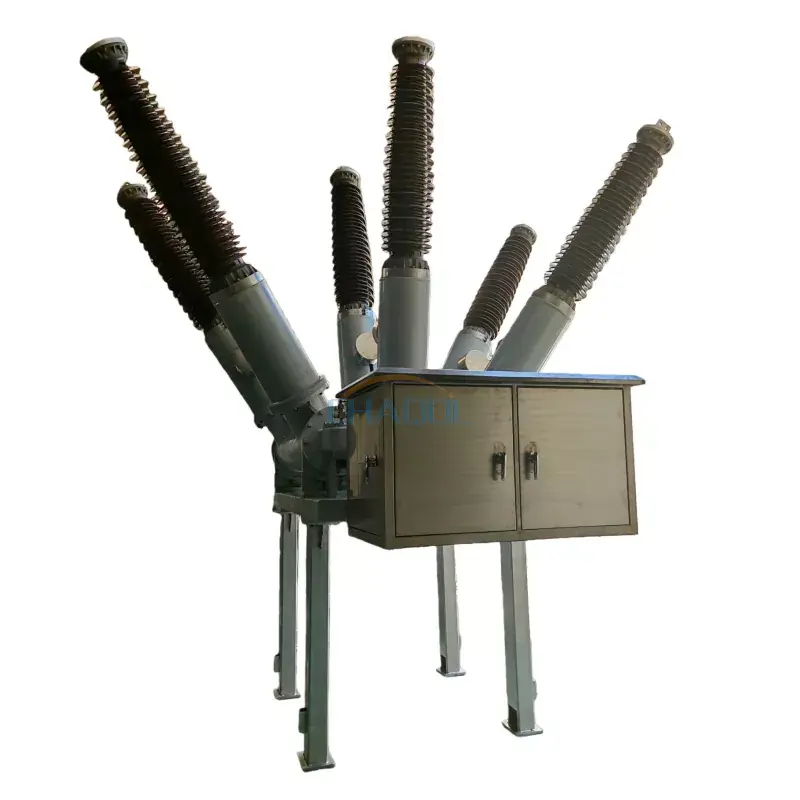

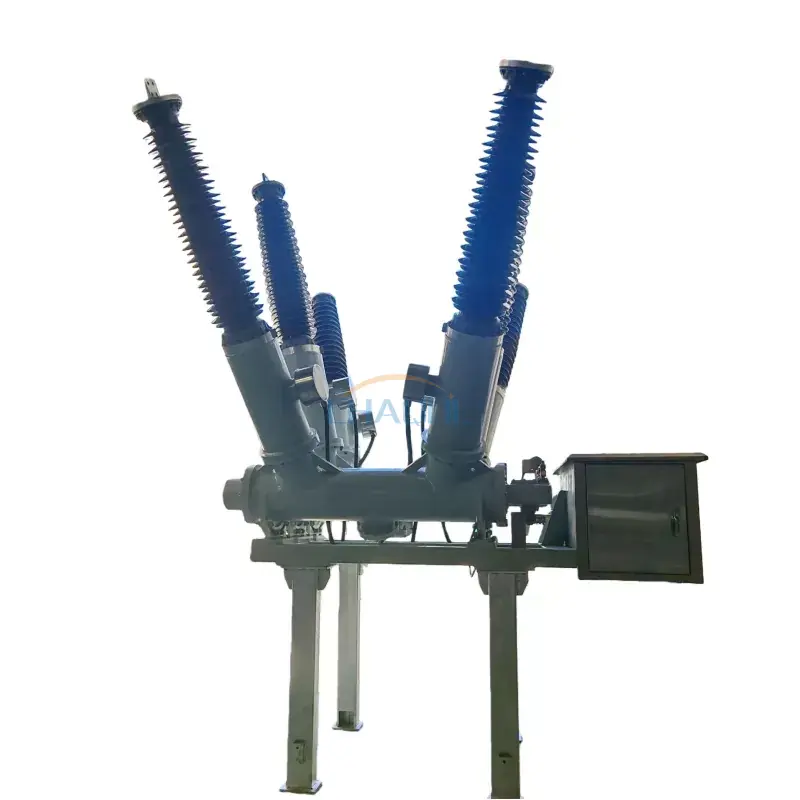

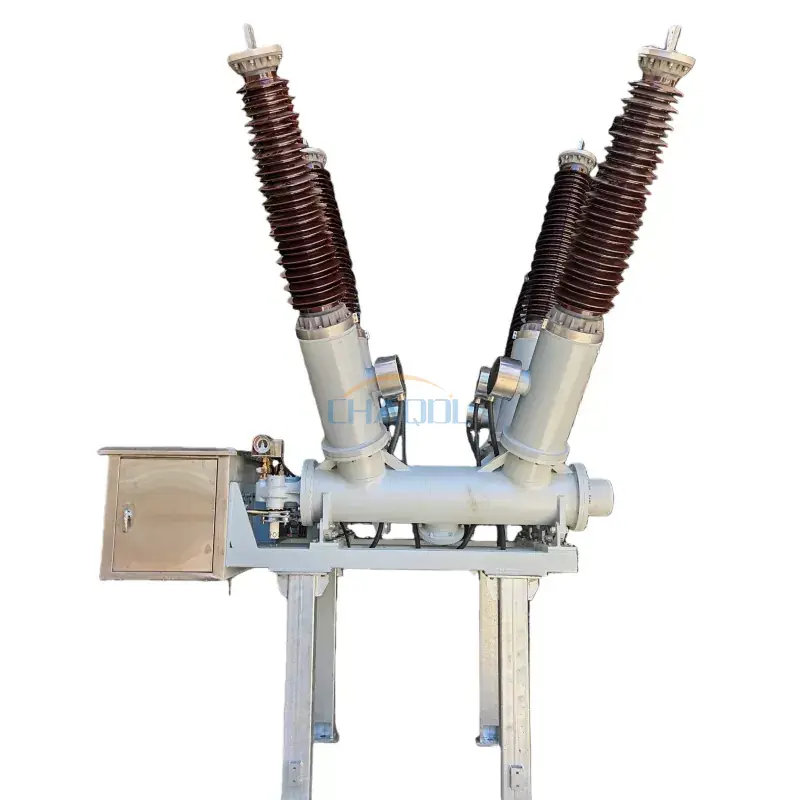

O le 66KV tane type SF6 circuit breaker, fa'ata'ita'iga LW36-66, o lo'o fa'aaogaina i le 66KV (126KV) eletise fa'asalalau ma le tufatufaina atu fa'atasi ma le fua fa'atatau ole 50Hz tolu-vaega AC. E mafai fo'i ona fa'aoga e fai ma fusi fusiua ma mo le fesuia'iina o faletupe capacitor. O lenei SF6 va'ava'ava'a fa'aalia se fausaga fa'apitoa, la'ititi tulagavae, ma e mana'omia sina galuega fa'apipi'i. E fa'amalieina fo'i mana'oga mo le su'ega e leai se suau'u ma e iai lona ola fa'ainisinia e o'o atu i le 10,000 galuega.

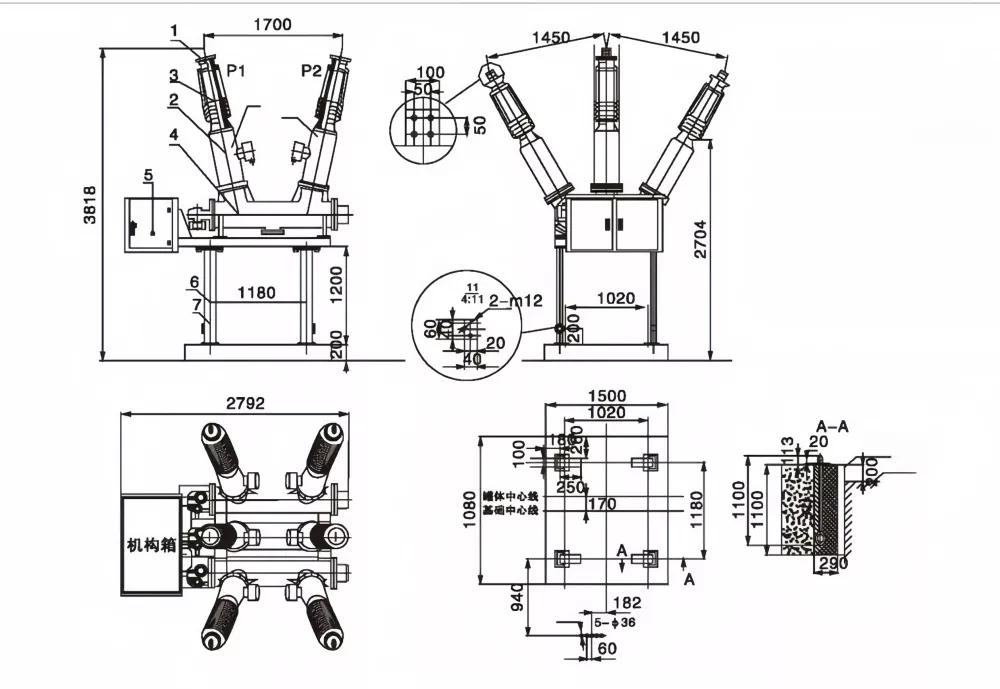

1. poloka fa'agata fa'auma tasi (fa'alu'iina i le siliva) le alumini.
2. 66KV fa'ato'a alu i fafo (maualuga alumini porcelain)
3. CT fa'apipi'i (e ala i-ituaiga pupuni)
4. Potu tineia afu (ituaiga tane fa'apipi'i i fola)
5. Pusa Mechanism (e aofia ai le masini faʻaogaina ma le vaega lona lua)
6. Lagolago uamea ala (120mm)
7. Poloka fa'avae (4 nofoaga)
1. Fa'atinoga malosi o oloa, maualuga fa'atatau i le taimi nei le gafatia o le tauaveina, e o'o atu i le 3150A.
2. Umi o oloa ola, ola eletise o le 31.5kA * 24 taamilosaga, ma le ola masini e oo atu i le 10,000 taamilosaga.
3. Fa'amaufa'ailoga fa'atuatuaina, SF6 fua faatatau leakage fa'aletausaga <0.5%.
4. 66KV Tank Type SF6 Circuit Breaker e talafeagai mo siosiomaga faʻaogaina faigata, e aofia ai le faʻaleagaina o le IV ma le vevela mai le -40 ° C i le + 40 ° C.
Fa'amatalaga Fa'amatalaga Fa'atekinisi
|
Voli fa'atatau |
66KV |
|
Ole tele ole eletise e mafai ona tetee atu i le voltage (5 min) ole kasa SF6 ile mamafa ole fua. |
84KV |
|
Fa'atatau taimi |
50Hz |
|
Fa'atatau i le taimi nei |
3150A |
|
Fa'ai'uga tulaga muamua |
1.5 |
|
Fa'atatauina le fa'aupu-pu'upu'u o lo'o faia nei (taua maualuga) |
80kA |
|
Fa'atatauga pupuu fa'asagatau i le taimi nei |
31.5kA |
|
Fa'atatau maualuga e tetee atu i le taimi nei |
80kA |
|
Fuafuaina le umi o le li'o pu'upu'u |
4s |
|
Fa'avasegaina i fafo o le la'asaga soli o le taimi nei |
8kA |
|
Fuafuaina le tauina o laina ma fesuiai le taimi nei |
10A |
|
Fua fa'atatau le kasa sulfur hexafluoride mamafa (fua fa'amau i le 20 ℃) |
0.5Mpa |
|
Fa'aletausaga le SF6 kesi leke |
<0.5% |
|
Soifua fa'ainisinia |
10,000 taimi |
|
O le mamafa o le kesi SF6 ua fa'atumu i iunite ta'itasi. |
10kg |
|
O le mamafa o ta'amilosaga ta'itasi |
1800kg |
|
Volivili eletise fesoasoani |
DC220V/110V |
|
Tatala ma tapuni coil voltage/vaitaimi |
DC110/4;DC220/2 |
|
Taimi e teu ai malosiaga tau afi |
≤15s |
|
Fa'avevela ma moli eletise eletise |
AC220V |
|
Su'e fesoasoani ua fuaina voltage |
DC220V/AC220V |
|
Su'e fesoasoani fa'atatau i le taimi nei |
10A |
|
Malosiaga teuina malosi afi |
600W |
