40.5KV i fafo motumotu Suiga

Model:GW5-40.5

Anqiang Power's tuto'atasi atiina ae 40.5KV fafo motuseseina ki o se lua-koluma, malolo faalava, ogatotonu-tatala ituaiga, ma e mafai ona faaauupegaina ki faavae i luga o le tasi po o itu uma e lua. O se masini eletise maualuga i fafo e talafeagai mo talosaga AC 50Hz, faʻatasi ai ma le maualuga o le voltage o le 40.5KV, 72.5KV, ma le 126KV. E mafai ona tatou faʻavasegaina e tusa ai ma ata poʻo manaʻoga o tagata faʻatau.

Auina atu Su'esu'ega

Fa'amatalaga o oloa

Le GW5 fa'asologa40.5KV i fafo motumotu Suigaua fuafuaina mo le feololo ma le maualuga voltage felauaiga ma tufatufa fesoʻotaʻiga o loʻo faʻaogaina i lalo ole AC 50Hz. E masani ona faʻaaogaina i substations ma nofoaga eletise e faʻamavae saogalemu ai taʻavale i lalo ole voltage e aunoa ma se uta. O le fausaga e faʻaogaina ai le faʻaogaina o le V-ituaiga faʻataʻitaʻi faʻasolosolo lua, faʻamautinoa le kilia eletise mautu ma le faʻalagolago malosi i le siosiomaga i fafo.

Fa'atusatusa i suiga tu'ufa'atasi masani, o lenei40.5KV i fafo motumotu Suigae maua ai le faʻaleleia atili o le matagi, faʻaleleia le faʻaogaina o le faʻaleagaina, ma le faʻaogaina o fesoʻotaʻiga faʻamautu, e talafeagai mo le faʻagaioia umi i le gataifale, toafa, ma le maualuga o le susu.

Fuafuaga Fuafuaga Autu

Fa'alava fa'alava fa'alava fa'atusa V fa'atū-lua mo le fa'aleleia atili o le mautu
Fuafuaga fa'atutu fa'atasi ma porcelain malosi-maualuga po'o insulators tu'ufa'atasi
Lagolagoina faiga fa'aoga tusi lesona ma afi
Fa'atonuga fa'avae e filifili ai: e le fa'avaeina, fa'avae tasi, fa'alua-lua
Faiga feso'ota'i fa'ainisinia i le va o le lau autu ma le lau fa'avae mo le saogalemu
Faʻaleleia le faʻafefeteina mo le tautua i fafo mo se taimi umi

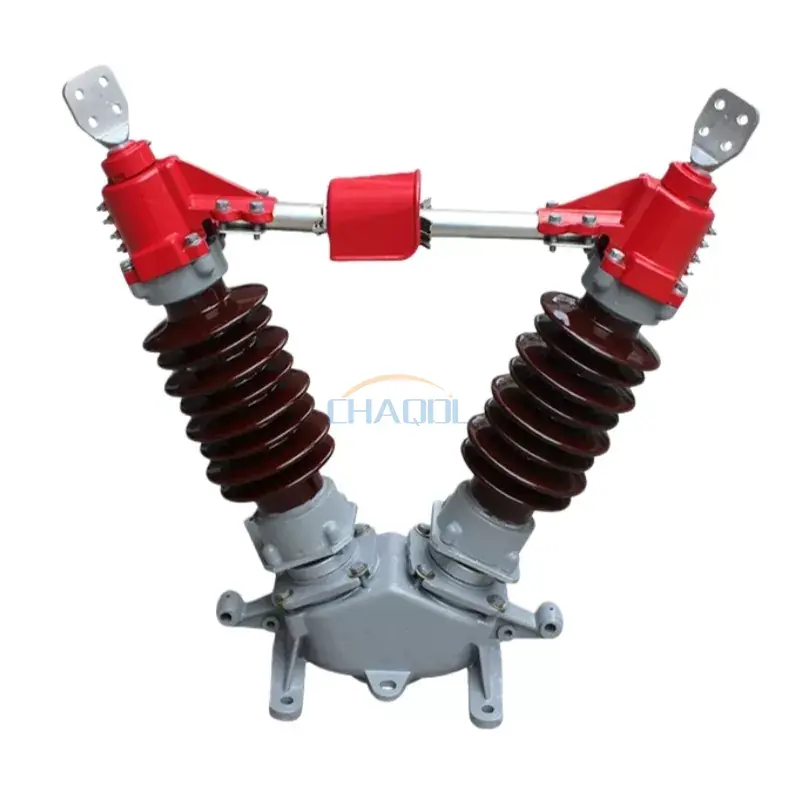

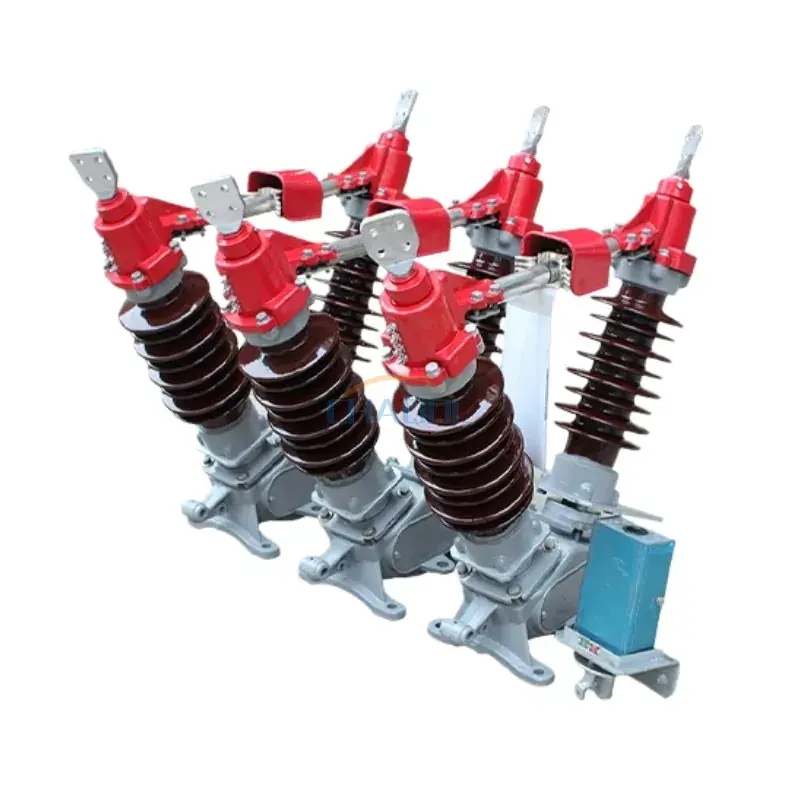

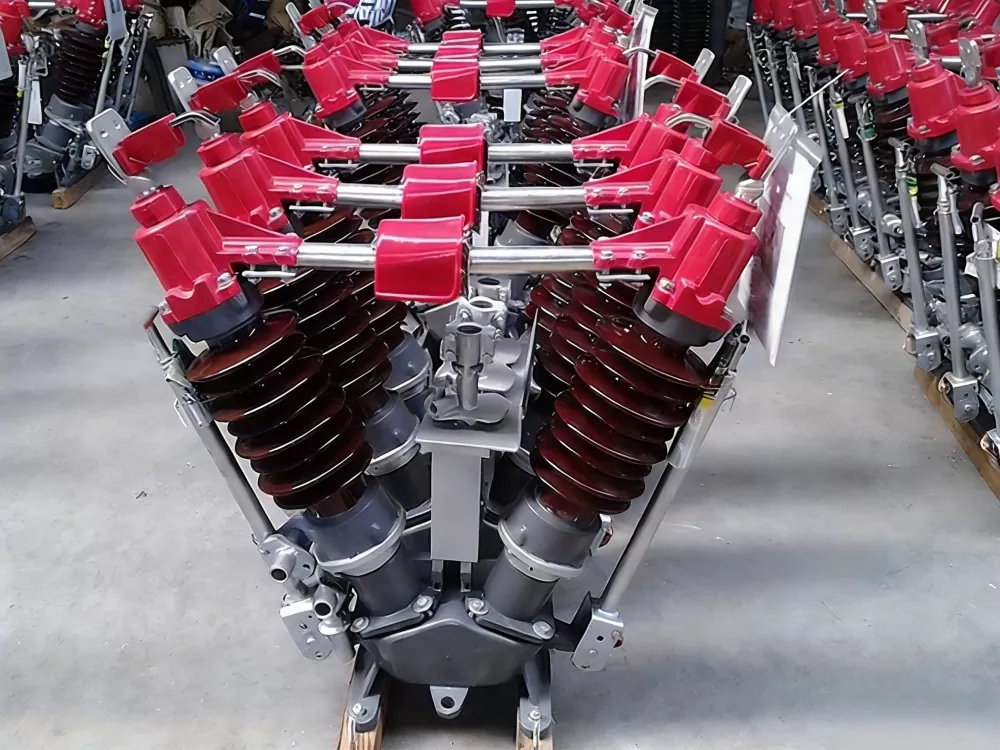

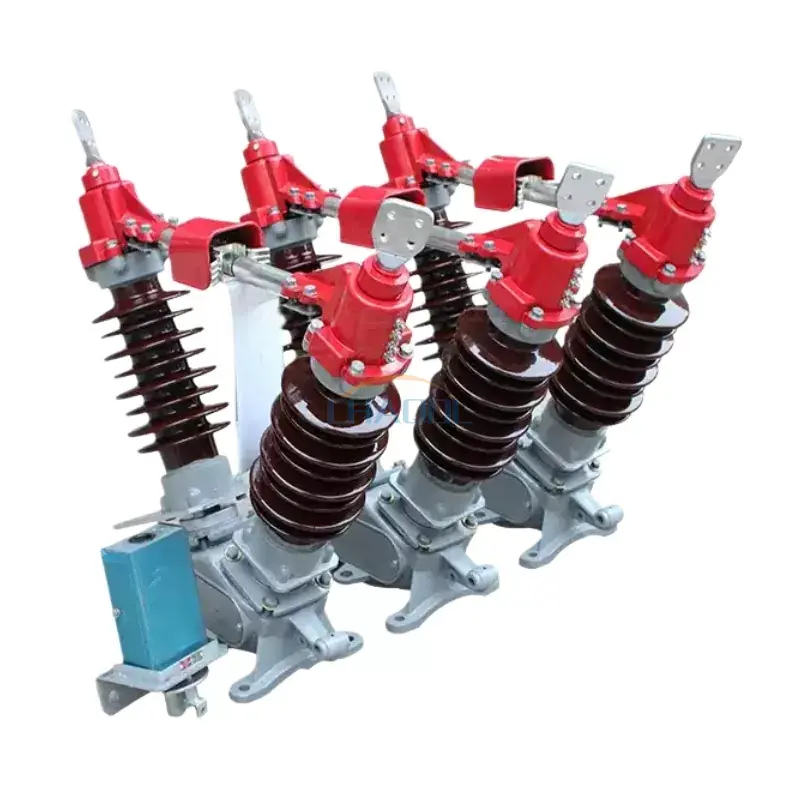

Ata Oloa Moni

40.5KV Outdoor Disconnecting Switch

Vaega Fa'atekinisi

Igoa Poloketi			Fa'atatauga
Voli fa'atatau			40.5KV	72.5KV			126KV
Fuafuaina tulaga insulation	1-minute le tele o le eletise e tetee atu i le voltage		95/115 KV	140/160 KV			230/245KV
	O le uila e tetee atu i le voltage		185/215 KV	325/375 KV			550/630 KV
Fa'atatau taimi			50Hz
Fa'atatau i le taimi nei			630/1250A	1600A			2000A
Fuafuaina le umi o le li'o pu'upu'u			4/2s
Fa'atatauina uta fa'ainisinia	uta faaumiumi faalava		750N	1000N
	uta fa'asaga i tua		500N	750N
	Malosi tūtū		750N	1000N
Mamao fetolofi			1013/1256mm	1813/2248mm
Soifua fa'ainisinia			2000 taimi
Fa'agaioia fa'agaioi lima			CS17，CS17G
Fa'atonuga fa'atino e fa'aosoina afi		Fa'ata'ita'iga	CJ5/CJ6
		eletise afi	AC220/380，DC220
		Pulea eletise eletise	AC220, DC220
		Taimi e tatala ai (o le ta'avale ta'avale)	6±1s
Oloa mamafa		Le fa'avae	360kg		500kg	800kg
		Fa'avae tasi	390kg		560kg	900kg
		Fa'avae fa'alua	430kg		620kg	1000kg

Ata Fua o Mea

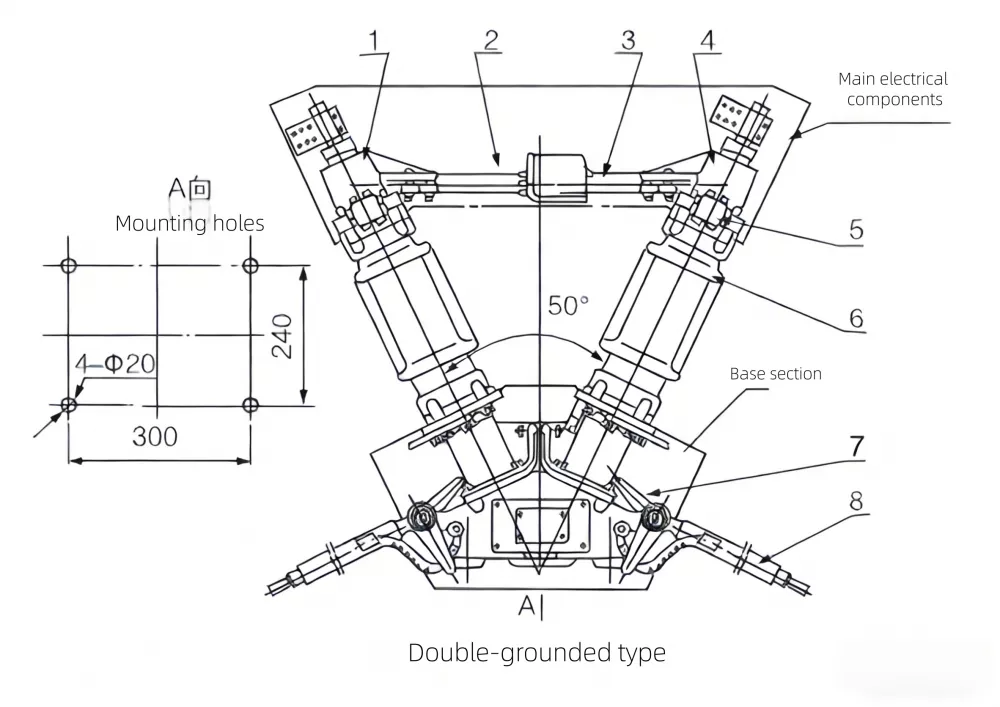

GW5-40.5KV Fa'ata'ita'iga Su'e Su'e i fafo

40.5KV Outdoor Disconnecting Switch Dimensions Diagram

1. Terminal poloka
2. Feso'ota'iga autu
3. Fa'afeso'ota'i tamatamai lima autu
4. poloka fa'amau
5. Fa'alaloina le tamatamailima fa'afeso'ota'i
6. Fa'amau fa'amau
7. Faatapulaa ipu
8. Ki fa'avae

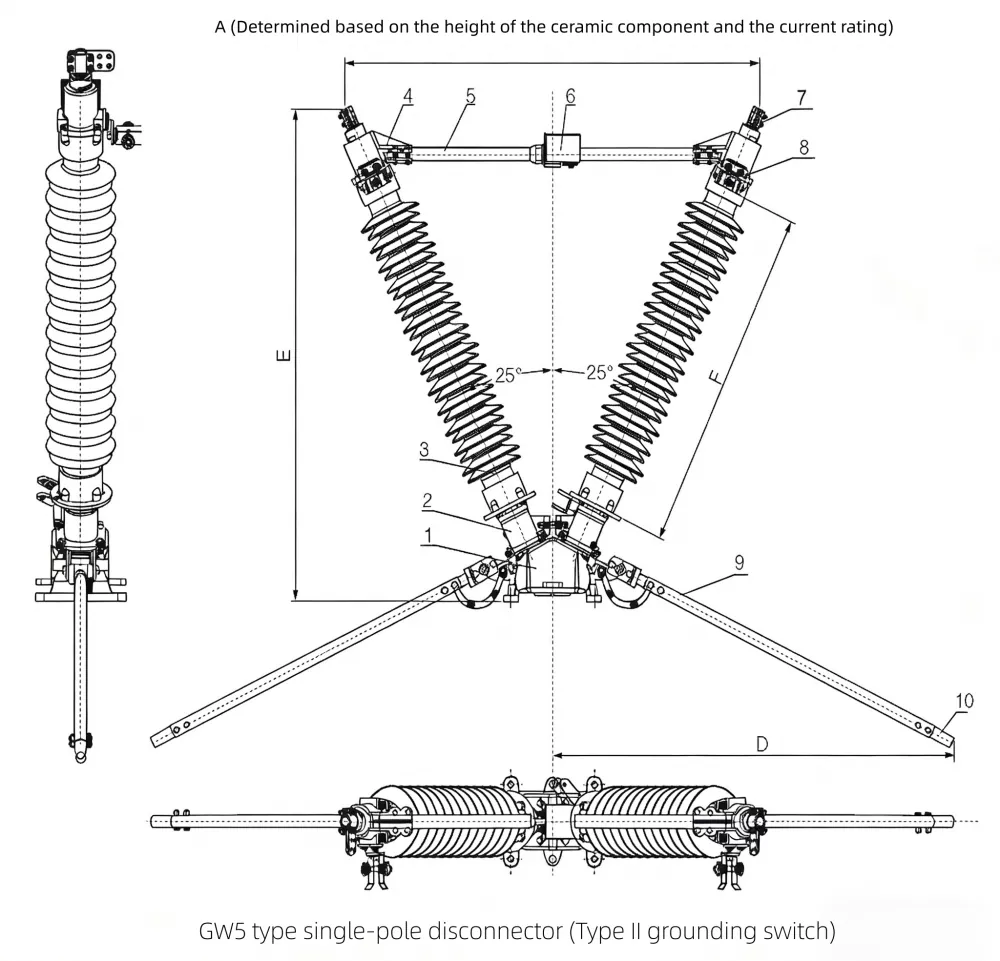

GW5-126 Fa'ata'ita'iga o Su'iga Suiga i fafo

Outdoor High Voltage Disconnect Switch Diagram

1. Fa'avae
2. Lagolago
3. pou fa'amama
4. poloka fa'amau
5. Tooto'o fa'a'au'au fa'a'ave'au
6. Tooto'o fa'aoso fa'a'au fa'atafafa
7. Fa'amau fa'amau
8. Feso'ota'i fa'amau le ki fa'avae
9. Grounding ki faagaau alumini
10. Fa'afeso'ota'i ki fa'avae

Fa'atusatusaga ma Oloa Fa'atusa

Mea'ai o Iloiloga	O le matou GW5 40.5KV Fa'asao i fafo Suiga	Fa'ata'ita'iga Fa'atauvaga masani
Tulaga faufale	Fuafuaga faʻamalosia V-ituaiga faʻalua faʻatasi ma le maualuga o le matagi	Fa'avae-koluma tasi, mautu fa'ainisinia maualalo
Fa'afeso'ota'i fa'atinoga	O tamatamailima fa'afeso'ota'i fa'apipi'i siliva, fa'asiliina le tufatufaina atu o le mamafa	Feso'ota'iga apamemea masani, fa'alava vave
Tumau i fafo	Fa'apipi'i fa'a'ele'ele + fa'amalosia le insulator system	Fa'apipi'i fa'avae, fa'atapula'aina le fa'atinoina o le gataifale
Gaioiina fetuutuunai	Lagolagoina tusi lesona + faʻaogaina afi faʻatasi ma le puipuiga faʻapipiʻi	Ole tele ole fa'agaioiga lima
Tau o le tausiga	Maualalo ona o le umi o le ola masini (2000 taamilosaga)	Ole tele ole tausiga ole taimi

Fa'atinoga Fa'atusa

O le40.5KV i fafo motumotu Suigafa'aaoga lautele i:

Su'e eletise maualuga ma sui fale
Faiga fa'aesea laina eletise
Feso'ota'iga tufatufaina atu o eletise
Malosi'aga fa'afouina nofoaga feso'ota'iga (matagi & fa'ato'aga sola)
Poloketi fa'alelei i le taulaga ma nu'u i tua

Faatasi ai ma lona mamanu faʻainisinia malosi ma le faʻaogaina o le eletise, o lenei motumotu o se filifiliga faʻatuatuaina mo tagata faʻatautaia e manaʻomia ai le saogalemu umi ma le faʻaogaina lelei o siosiomaga i fafo.

Fa'ailoga vevela: 40.5KV Su'e Fa'asao i fafo, Su'ega Su'e Voltage Maualuga, Fa'atau Suiga Fa'aeletise Fa'apitoa
